The MAG B650 Tomahawk WiFi motherboard supports up to 6 fans, with options to expand further using fan splitters or hubs for a versatile and efficient cooling setup.
In this article, we’ll explore the fan support offered by the MAG B650 Tomahawk WiFi motherboard, how to configure and optimize your cooling setup, and additional tips to ensure your system runs at peak performance.

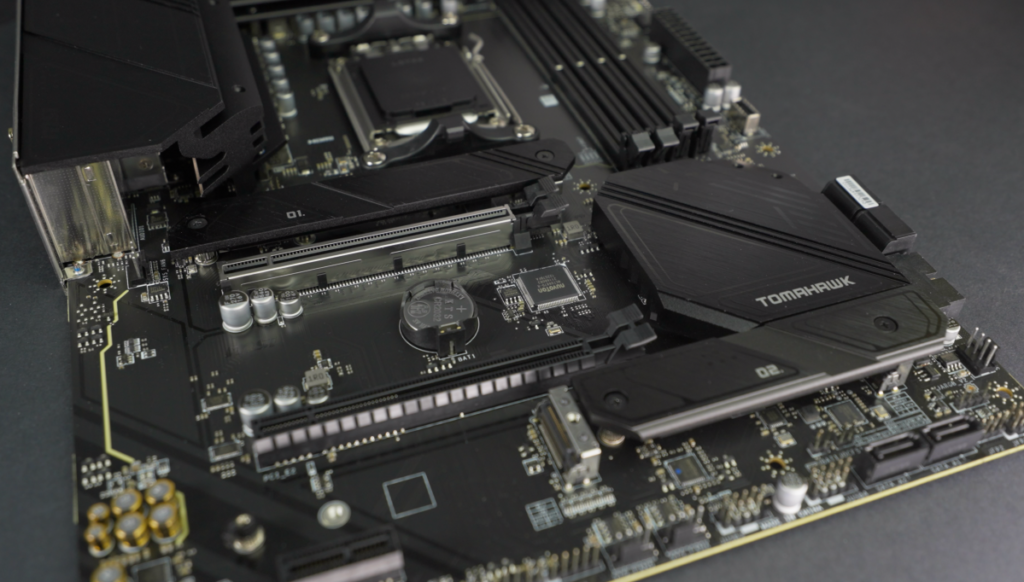

Overview of the MAG B650 Tomahawk WiFi Motherboard:
The MAG B650 Tomahawk WiFi motherboard is built around AMD’s B650 chipset and supports the latest AMD Ryzen 7000 series processors. This motherboard is designed to provide a balance between performance and value, making it a popular choice among gamers and PC builders. Some of its key features include:
- WiFi 6E and Bluetooth 5.2 for fast, wireless connectivity.
- PCIe 4.0 support for high-speed graphics cards and storage devices.
- Dual M.2 slots with heatsinks, allowing for ultra-fast NVMe SSDs.
- Robust power delivery with premium components for stable overclocking.
- Multiple USB ports, including USB 3.2 Gen 2×2 for fast data transfer.
- Advanced audio solutions with Realtek ALC1200 codec for immersive sound.
With these features, the MAG B650 Tomahawk WiFi motherboard is well-equipped to handle intensive workloads, gaming, and content creation.
Fan Headers and Cooling Capabilities:
The cooling of a high-performance PC relies heavily on the fans and their placement within the system. The MAG B650 Tomahawk WiFi motherboard comes equipped with a total of 6 fan headers:
- CPU Fan Header (1): This header is specifically designed to power the CPU cooler’s fan. Whether you are using an air cooler or a liquid cooling solution with a single fan, this header ensures your CPU remains within safe operating temperatures.
- Pump Fan Header (1): If you are using an AIO (All-In-One) liquid cooler, the pump fan header is dedicated to powering the pump that circulates the coolant. This is crucial for maintaining optimal temperatures, especially when overclocking your CPU.
- System Fan Headers (4): These headers are used for connecting case fans. The placement of these fans within your PC case is vital for creating an effective airflow system that cools your components, particularly the GPU, RAM, and storage devices.
How to Utilize the Fan Headers Effectively:
The arrangement and utilization of the fan headers on the MAG B650 Tomahawk WiFi motherboard can significantly impact your system’s cooling efficiency. Here’s how to make the most out of these headers:
- CPU Cooling: The CPU fan header should be used exclusively for the CPU cooler. If you are using an air cooler, ensure the fan is properly mounted on the cooler’s heatsink. For liquid coolers, connect the pump to the pump fan header and the radiator fan(s) to the CPU fan header.
- Case Airflow Configuration: The 4 system fan headers allow for flexible configurations depending on your case and airflow needs. A typical setup might include:
- Front Intake Fans: Positioned at the front of the case, these fans draw cool air into the case, cooling the GPU and other components.
- Top Exhaust Fans: Located at the top of the case, these fans help expel hot air rising from the CPU and GPU.
- Rear Exhaust Fan: Positioned at the back of the case, this fan removes hot air generated by the CPU and other components.
- Optimizing Airflow: To achieve optimal cooling, it’s important to balance the number of intake and exhaust fans. This balance ensures that the air pressure within the case is either neutral or slightly positive, which can help minimize dust buildup while maintaining efficient cooling.
Also Read: Z270 Killer Motherboard Ram Type – Everything You Need to Know!
Expanding Fan Support: Using Fan Hubs and Splitters
If you need to install more than 6 fans in your build, you can use fan splitters or fan hubs to increase the number of fans your motherboard can handle. Here’s how:
- Fan Splitters: A fan splitter allows you to connect multiple fans to a single fan header. This is useful if you have more fans than available headers. However, it’s important to ensure that the combined power draw of the fans does not exceed the header’s rated capacity.
- Fan Hubs: A fan hub is an external device that connects to a single fan header on your motherboard but provides multiple outputs for additional fans. Some fan hubs are powered directly by the PSU, allowing for more fans without overloading the motherboard’s fan headers.
Using these tools, you can significantly expand your system’s cooling capabilities, making it easier to maintain low temperatures in even the most demanding environments.
BIOS and Software Control for Fan Speed:

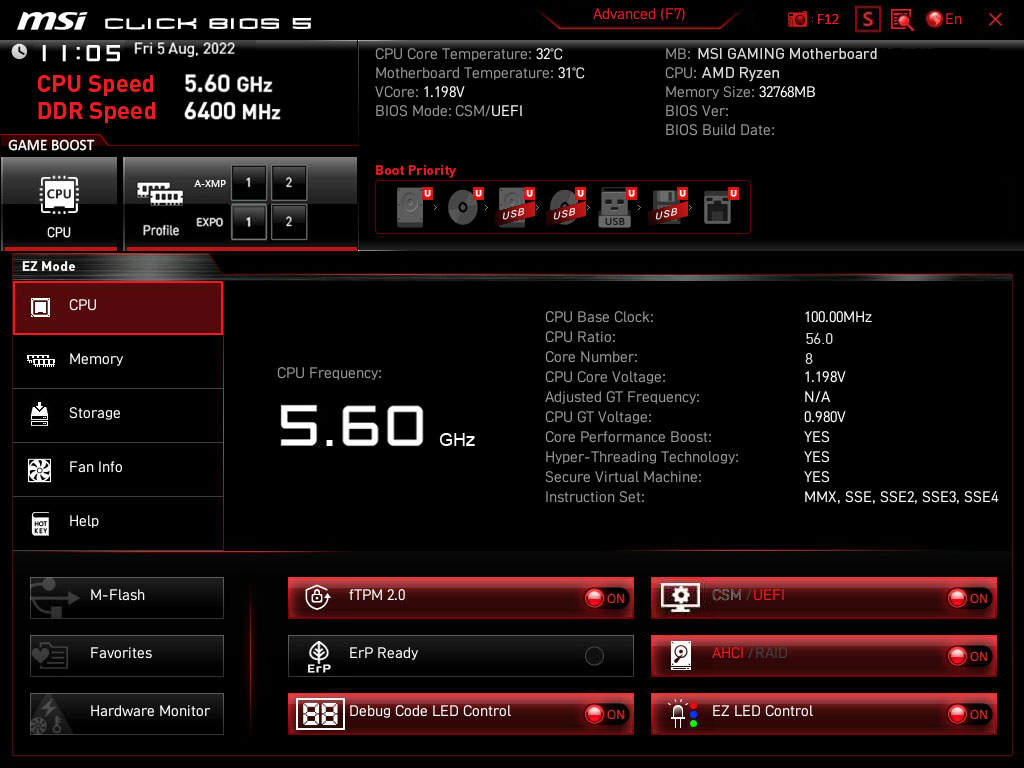

The MAG B650 Tomahawk WiFi motherboard offers advanced control over fan speeds through its BIOS and software tools. Here’s how you can take advantage of these features:
- BIOS Control: Within the UEFI BIOS, you can access the fan control section to manually adjust fan speeds based on temperature thresholds. This allows for fine-tuning of your system’s cooling performance.
- MSI Dragon Center: MSI’s Dragon Center software provides a user-friendly interface to control fan speeds, monitor temperatures, and create custom fan profiles. This software is particularly useful for dynamically adjusting fan speeds based on your system’s workload, ensuring optimal cooling and noise levels.
- Smart Fan Mode: The smart fan mode in Dragon Center allows you to set up temperature curves, where fan speeds increase as the system’s temperature rises. This feature is crucial for maintaining a balance between cooling efficiency and noise reduction.
Tips for Optimizing Your Cooling Setup:
To get the most out of the MAG B650 Tomahawk WiFi motherboard’s cooling capabilities, consider the following tips:
- Use High-Quality Fans: Invest in high-quality fans that offer good airflow and static pressure. Fans with fluid dynamic bearings or magnetic levitation bearings tend to offer quieter operation and longer lifespan.
- Consider Case Design: Choose a PC case with good airflow design. Cases with mesh fronts and ample ventilation points allow for better air circulation, enhancing the effectiveness of your fans.
- Regular Maintenance: Keep your fans and dust filters clean. Dust buildup can significantly reduce the effectiveness of your cooling setup by obstructing airflow and increasing temperatures.
- Monitor System Temperatures: Regularly monitor your system’s temperatures using software tools. This helps you identify any cooling issues early and allows you to make adjustments before they become serious problems.
FAQ’s
1. How many fan headers are available on the MAG B650 Tomahawk WiFi motherboard?
The MAG B650 Tomahawk WiFi motherboard has 6 fan headers: 1 CPU fan header, 1 pump fan header, and 4 system fan headers.
2. Can I add more than 6 fans to the MAG B650 Tomahawk WiFi motherboard?
Yes, you can use fan splitters or fan hubs to connect additional fans beyond the 6 provided headers.
3. Does the MAG B650 Tomahawk WiFi motherboard support CPU liquid cooling?
Yes, it has a dedicated pump fan header for AIO liquid cooling systems.
4. How can I control fan speeds on the MAG B650 Tomahawk WiFi motherboard?
Fan speeds can be controlled through the UEFI BIOS or using MSI’s Dragon Center software.
5. What is the best way to configure fan placement for optimal cooling?
Use front intake fans for cool air, top and rear fans for exhaust, and balance intake and exhaust fans to maintain neutral or slightly positive air pressure.
Conclusion
The MAG B650 Tomahawk WiFi motherboard supports up to 6 fan headers for versatile cooling options. Proper fan placement, combined with fan hubs, splitters, and BIOS controls, ensures optimal temperatures and quiet performance. This setup helps your system handle demanding tasks efficiently.
