To determine if an SSD is compatible with your motherboard, check the SSD type (SATA, M.2, or PCIe), match it with the motherboard’s ports or slots, and consult the motherboard’s manual or specifications for compatibility.
When upgrading your computer or building a new one, selecting the right SSD (Solid-State Drive) is crucial for achieving optimal performance. However, ensuring that your SSD is compatible with your motherboard is just as important.
This detailed guide will walk you through everything you need to know about checking SSD compatibility with your motherboard, covering various types of SSDs, interface requirements, and troubleshooting tips.
Understanding Different Types of SSDs:

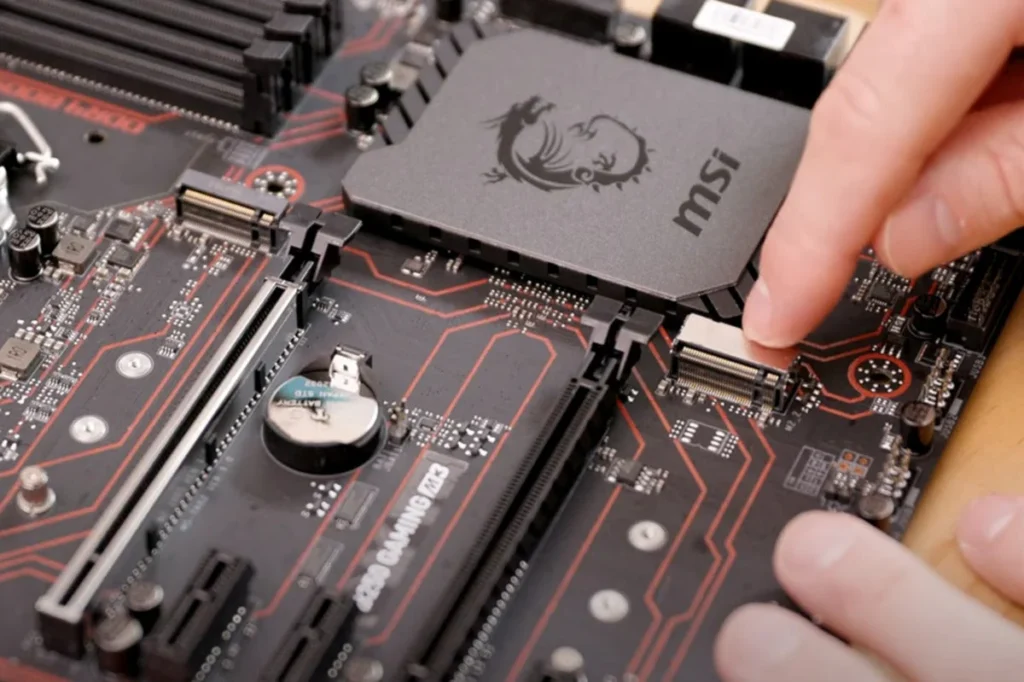

1. SATA SSDs
- Description: SATA SSDs use the Serial ATA (SATA) interface, which is the same interface used by traditional hard drives. They are widely used due to their balance of performance and affordability.
- Compatibility: These SSDs are generally compatible with most motherboards that have SATA ports. They come in a 2.5-inch form factor and connect via SATA cables.
2. M.2 SSDs
- Description: M.2 SSDs are smaller and connect directly to the motherboard via an M.2 slot. They are available in two main types:
- SATA M.2 SSDs: These use the SATA interface but are smaller and more compact. They offer similar performance to 2.5-inch SATA SSDs.
- NVMe M.2 SSDs: These use the NVMe (Non-Volatile Memory Express) protocol, which provides faster data transfer speeds than SATA SSDs. They require a specific M.2 slot that supports NVMe.
3. PCIe SSDs
- Description: PCIe (Peripheral Component Interconnect Express) SSDs connect to a motherboard via a PCIe slot and offer very high-speed data transfers. They are often used in high-performance systems.
- Compatibility: These SSDs use PCIe slots, which are different from the SATA and M.2 slots. Make sure your motherboard has an available PCIe slot and that it supports the specific type of PCIe SSD you are considering.
Identifying SSD Compatibility with Your Motherboard:
1. Consult Your Motherboard Manual
- Importance: The motherboard manual provides detailed information about the types of SSDs and the number of each type that your motherboard supports.
- How to Use: Look for sections on storage or expansion options in the manual. This will specify whether the motherboard supports SATA, M.2, or PCIe SSDs and provide details on the maximum number and types of SSDs that can be installed.
2. Check Manufacturer’s Specifications Online
- Importance: Manufacturers often provide detailed specifications on their websites, including compatibility information for various SSDs.
- How to Use: Search for your motherboard model on the manufacturer’s website and navigate to the specifications or support page. This will help you find the exact details about compatible SSD types and capacities.
3. Examine Physical Ports and Slots
- SATA Ports: Look for long, thin connectors labeled SATA on your motherboard. Most motherboards have multiple SATA ports for connecting SATA SSDs and other drives.
- M.2 Slots: M.2 slots are usually located near the CPU or RAM slots. They come in different sizes and support either SATA or NVMe SSDs. Ensure the slot matches the SSD type you are using.
- PCIe Slots: PCIe slots are wider and used for PCIe SSDs. They are typically found on the motherboard’s expansion slot area. Confirm that you have an available PCIe slot and check the SSD’s compatibility with the PCIe version supported by your motherboard.
Matching SSD Specifications with Motherboard:
1. Interface Compatibility
- SATA SSDs: Ensure that the motherboard has available SATA ports and that the SSD’s interface matches the motherboard’s SATA version (e.g., SATA III).
- M.2 SSDs: Confirm that the M.2 slot supports the type of M.2 SSD you have (SATA or NVMe). Not all M.2 slots support NVMe SSDs, so this is a crucial factor.
- PCIe SSDs: Verify that your motherboard’s PCIe slots are compatible with the SSD’s PCIe generation (e.g., PCIe 3.0 or PCIe 4.0).
2. Form Factor
- SATA SSDs: Typically come in a 2.5-inch form factor. Ensure that there’s space in your case and that the motherboard supports this size.
- M.2 SSDs: Available in various lengths like 2280 (22mm wide and 80mm long) or 2260. Check if the motherboard’s M.2 slot accommodates the SSD’s length.
- PCIe SSDs: Usually come as add-in cards that fit into PCIe slots. Ensure that the card fits in the available PCIe slot on your motherboard.
3. Storage Capacity Limits
- Importance: Some older motherboards might have limits on the maximum capacity of SSDs they support. This is less common with modern systems but still worth checking.
- How to Check: Consult the motherboard’s manual or specifications to find out if there are any maximum storage limits for the SSDs it supports.
BIOS/UEFI Compatibility:
1. Update BIOS/UEFI Firmware
- Importance: Newer SSDs might require an updated BIOS or UEFI firmware to be recognized and function correctly.
- How to Update: Download the latest BIOS/UEFI firmware from the motherboard manufacturer’s website and follow their instructions to update.
2. Check BIOS/UEFI Settings
- Importance: Some settings in the BIOS/UEFI might need adjustment for the SSD to be detected or function properly.
- How to Check: Enter the BIOS/UEFI setup during system startup and look for storage configuration settings. Ensure that the SSD is detected and correctly configured.
Alternatives to SATA Ports:
1. M.2 Slots
- Benefit: M.2 slots support high-speed NVMe SSDs, which can significantly improve system performance compared to SATA SSDs.
- Usage: If your motherboard has an M.2 slot, consider using it for NVMe SSDs to take advantage of their speed.
2. PCIe Expansion Cards
- Benefit: PCIe expansion cards can add extra M.2 or SATA ports to your system if the motherboard lacks enough ports.
- Usage: Install the expansion card in an available PCIe slot to add additional SSD connections.
3. External Drives
- Benefit: External drives connect via USB or Thunderbolt and can provide additional storage without opening the computer case.
- Usage: Useful for extra storage or for transferring files between computers.
Troubleshooting Compatibility Issues:
1. Firmware Updates
- Importance: Outdated firmware can prevent your SSD from being recognized or functioning correctly.
- How to Update: Check the SSD and motherboard manufacturer’s websites for the latest firmware updates and installation instructions.
2. Secure Connections
- Importance: Loose or improperly connected cables can cause detection issues.
- How to Check: Ensure all cables and connectors are securely attached to both the motherboard and SSD.
3. Technical Support
- Importance: If you’ve exhausted all troubleshooting steps and still encounter issues, professional assistance might be needed.
- How to Seek Help: Contact the technical support teams for your SSD or motherboard for specific guidance and solutions.
FAQ’s:
1. How can I tell if my motherboard supports an NVMe SSD?
Check your motherboard’s manual or specifications online to see if it includes an M.2 slot that supports NVMe SSDs.
2. Can I use a SATA SSD in any motherboard with SATA ports?
Yes, SATA SSDs are compatible with motherboards that have SATA ports, as long as the ports support the same SATA version (e.g., SATA III).
3. What should I do if my SSD isn’t recognized by the motherboard?
Ensure all connections are secure, update the BIOS/UEFI firmware, and check for any needed settings adjustments in the BIOS/UEFI.
4. Are PCIe SSDs compatible with all motherboards?
PCIe SSDs require a compatible PCIe slot on the motherboard. Verify that your motherboard has an available PCIe slot and supports the PCIe generation of your SSD.
5. How do I know if my motherboard supports large-capacity SSDs?
Consult your motherboard’s manual or manufacturer’s website for details on maximum supported SSD capacities.
Conclusion:
Ensuring SSD compatibility with your motherboard involves understanding the types of SSDs available and matching them with your motherboard’s ports and specifications. By checking the manual, verifying physical connections, and updating firmware, you can avoid compatibility issues and enhance your system’s performance. Accurate matching of SSDs and motherboards ensures a smoother upgrade or build process, leading to better overall computing efficiency.
