Can You Split Motherboard RGB Header – Simple Guide!

Yes, you can split a motherboard RGB header using an RGB splitter or hub to connect multiple devices, ensuring compatibility and proper power management to avoid overloading and signal issues.

Motherboard RGB headers have transformed PC customization, giving users the power to create stunning lighting effects for their systems. Whether it’s adding color to your gaming setup or brightening up your workspace, RGB lighting has become a key feature in modern PCs.

But what if your motherboard has limited RGB headers, and you want to connect more RGB devices? The solution is splitting the RGB header. Let’s explore how to do it, the benefits, and what you should know before trying.

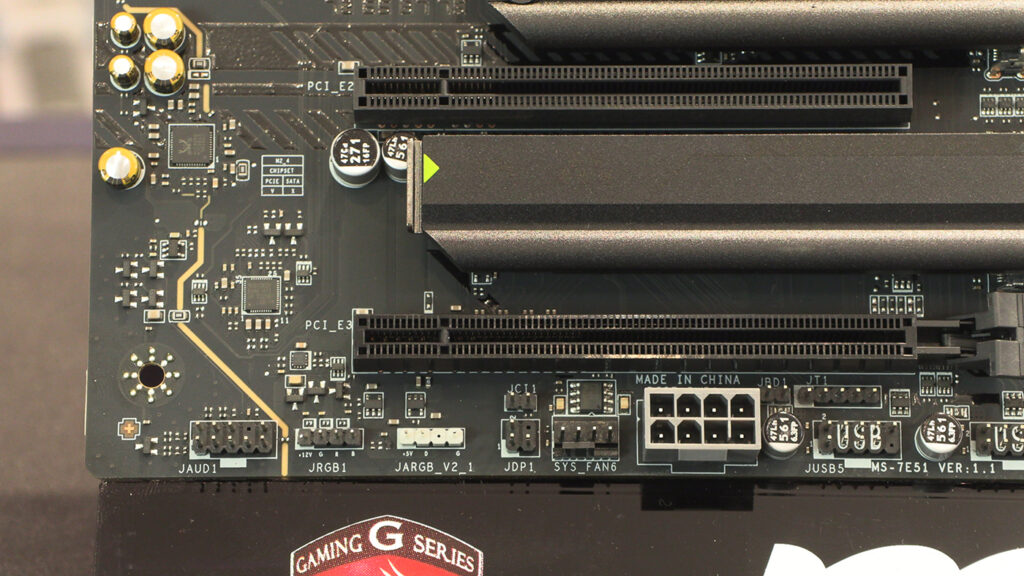

What is a Motherboard RGB Header?

An RGB header is a connector on your motherboard that controls the lighting of RGB devices like fans, LED strips, and cases. These headers allow your system’s lighting to sync with software, creating custom effects. There are two main types of RGB headers:

1. 4-Pin RGB Headers (12V): These control single-color lighting or basic effects, and all connected devices show the same color.

2. 3-Pin Addressable RGB Headers (5V): These allow more advanced lighting effects, where each light in the strip can be individually customized.

You can manage these headers using RGB control software provided by your motherboard brand, such as ASUS Aura Sync, MSI Mystic Light, or Gigabyte RGB Fusion.

Can You Split a Motherboard RGB Header?

Yes, you can split a motherboard RGB header. Splitting lets you connect multiple RGB devices to one header, expanding your lighting setup. This is achieved using an RGB splitter or hub. While splitting is straightforward, you must ensure compatibility and avoid overloading the header.

How to Split a Motherboard RGB Header?

Splitting an RGB header isn’t as complicated as it sounds. Here’s a step-by-step guide:

• Identify the RGB Header Type: Check your motherboard manual to confirm if your header is 4-pin (12V) or 3-pin (5V). Match your devices and splitter to this type.

• Choose the Right Splitter or Hub: Buy a high-quality RGB splitter cable or hub compatible with your header type. Powered hubs are a better choice for handling multiple devices.

• Connect the Splitter: Plug the splitter into your motherboard’s RGB header. Then, attach your RGB devices to the splitter’s ports.

• Test the Setup: Turn on your PC to check if the lighting works as expected. Use RGB control software to synchronize and customize effects.

Things to Keep in Mind While Splitting RGB Headers:

1. Power Supply: Splitting increases the number of devices connected to a single header. Ensure the motherboard can handle the combined power draw. Powered hubs are recommended for larger setups.

2. Signal Strength: Connecting too many devices can weaken the signal, causing inconsistent lighting. Powered hubs maintain a strong and stable signal.

3. Header Compatibility: Never mix 4-pin (12V) and 3-pin (5V) devices on the same header or splitter, as this can damage your components.

4. Cable Management: More devices mean more cables. Keep them organized to ensure good airflow and a clean look inside your PC.

Benefits of Splitting RGB Headers:

1. Expand Your Lighting Setup: Splitting headers allows you to add more RGB components, creating a visually stunning PC.

2. Save Money: Instead of upgrading your motherboard, splitting is a cost-effective way to connect more devices.

3. Unified Lighting: When done right, all your RGB components will synchronize, giving a smooth and cohesive lighting effect.

Also Read: B75 Motherboard What Generation Cpu Is Supported – B75 Motherboard Cpu Support!

Common Problems and How to Solve Them:

1. Lighting Doesn’t Work: Ensure all connections are secure and the splitter matches the header type.

2. Inconsistent Colors: This might happen if the signal is weak. Use a powered splitter or hub to resolve the issue.

3. Overheating Splitter or Header: This can occur if the header is overloaded. Disconnect some devices or switch to a powered hub.

Alternatives to Splitting RGB Headers:

1. External RGB Controllers: These controllers operate separately from the motherboard and can manage multiple RGB devices.

2. Upgrade Your Motherboard: Some high-end motherboards come with multiple RGB headers, eliminating the need for splitters.

3. Daisy-Chaining RGB Devices: Many modern RGB devices allow daisy-chaining, where one device connects directly to another.

FAQs:

1. Can all motherboards support splitting RGB headers?

Not all motherboards support splitting RGB headers. Ensure compatibility with your motherboard and RGB devices before attempting to split.

2. What is the best way to split RGB headers?

Using a powered RGB splitter or hub is the best way to split headers, as it ensures stable power and signal for multiple devices.

3. Can splitting RGB headers damage the motherboard?

Splitting can damage the motherboard if the power draw exceeds the header’s capacity. Use powered hubs to prevent overloading.

4. What’s the difference between 3-pin and 4-pin RGB headers?

3-pin headers (5V) support addressable lighting, while 4-pin headers (12V) offer single-color lighting for all connected devices.

5. How many devices can I connect with a splitter?

The number depends on the header’s power capacity and the devices’ power needs. A powered hub allows more devices without overloading.

Conclusion:

Splitting a motherboard RGB header is a simple, cost-effective way to expand your PC’s lighting setup. With the right splitter or hub, you can connect multiple RGB devices and create stunning effects. Ensure compatibility, proper power management, and signal strength to avoid issues. For advanced setups, powered hubs are recommended. By following these guidelines, you can achieve a visually cohesive and vibrant PC lighting system tailored to your preferences.
